• ›  Install 2x V-mount batteries
• ›  4pin Regulated 24V out, Max 240W
• ›  3pin Regulated 48V out, Max 500W
• ›  500W by SWIT Bi-voltage batteries
• ›  For Skypanel S60/S120 100% output
• ›  Neutrik XLR connectors
• ›  25-45mm light stand install

For High Power Cine Lights

By 2 Batteries, Regulated 24V/48V out

The high power lights usually use 24V or even 48V high voltage input. And TD-R210S is a solution to drive these high power lights with only 2x V-mount batteries, outputs regulated 24V or 48V, high load, ortable and easily to be mounted on C-stand.

Output Description

Max 48V 500W Load

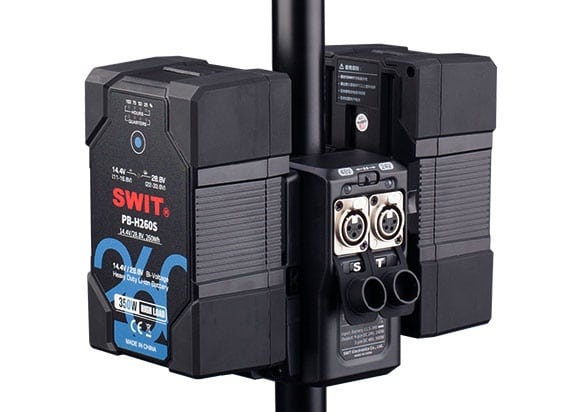

Installed with 2x V-mount batteries, the TD-R210S can output 4pin XLR regulated 24V or 3pin XLR regulated 48V DC power. By normal 14.4V batteries, the Max load is 240W; By SWIT 14.4V/28.8V Bi-voltage batteries, the Max load under 48V can reach 500W, to support high power lights like ARRI Orbiter, Skypanel S60-C / S120-C 100% light output.

Orbiter/Skypanel Power Solution

Orbiter, S60-C / S120-C 100% light output

ARRI Orbiter and SkyPanel S60-C / S120-C consume more than 400W power, and can output 100% light only input 48V DC. Use 2x SWIT high load bi-voltage PB-H260S with the TD-R210S adaptor, will output 48V 500W for Orbiter and Skypanel S60-C / S120-C.

Compact & Balanced

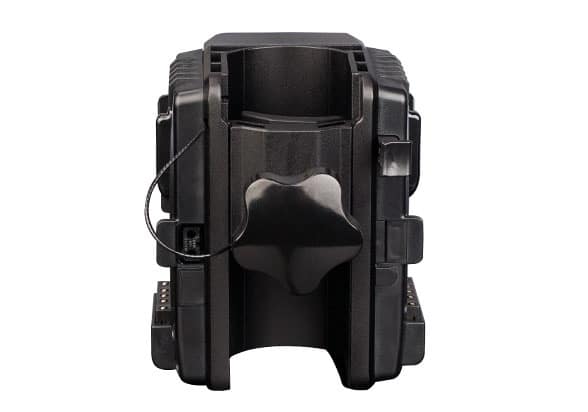

25-45mm diameter light stand install

TD-R210S has extremely compact size without fans, and fits on 25mm-45mm diameter light stand – all most all stands. It’s balanced with 2 batteries and reliable locker.

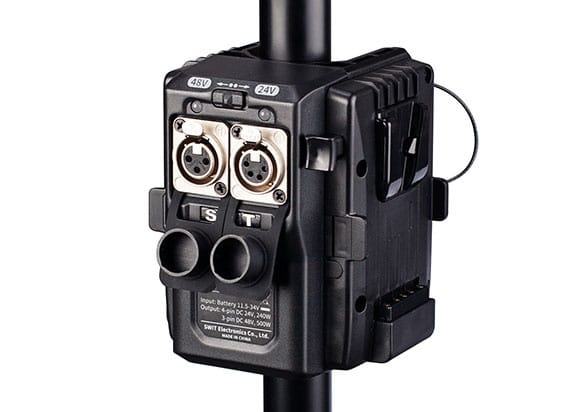

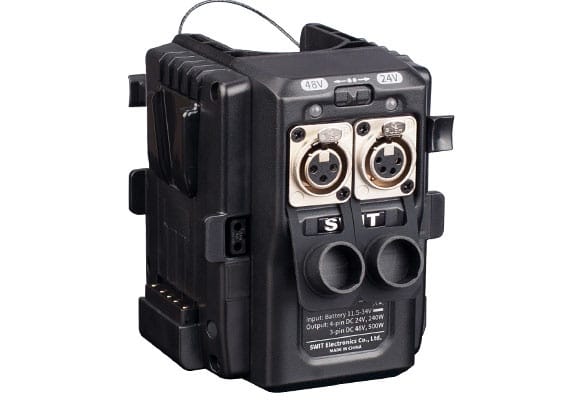

Neutrik XLR Socket

To ensure stable high current output, the TD-R210S adaptor uses Neutrik 3-pin & 4-pin XLR sockets, reliable and safe.
