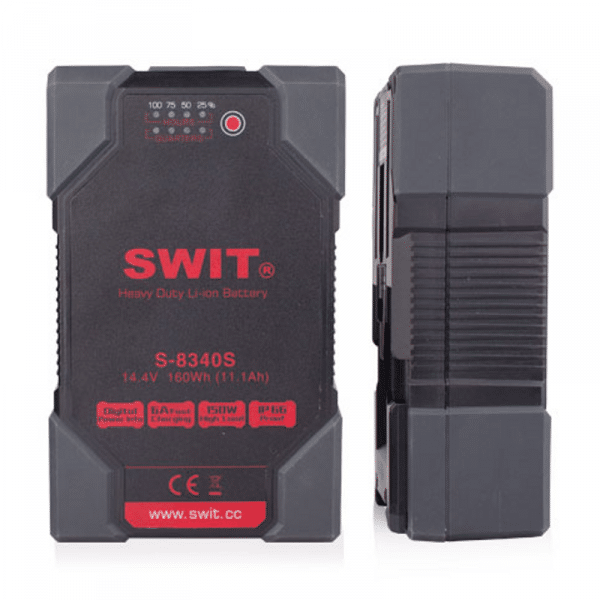

S-8340S is a 160Wh V-mount battery, for Cine and ENG cameras, with latest designed dual housing heavy duty structure,
drop-off proof and water proof. The battery supports digital power info display, which is an ideal power solution for field applications.

Mount : V-Mount / Type : Li-Ion
Power : 160Wh / Dimensions : 162×101×53mm
Weight : 1,0kg / Output : 150W / 12A

Specials :
D-Tap Output
LED Display
6A Quick-Charge

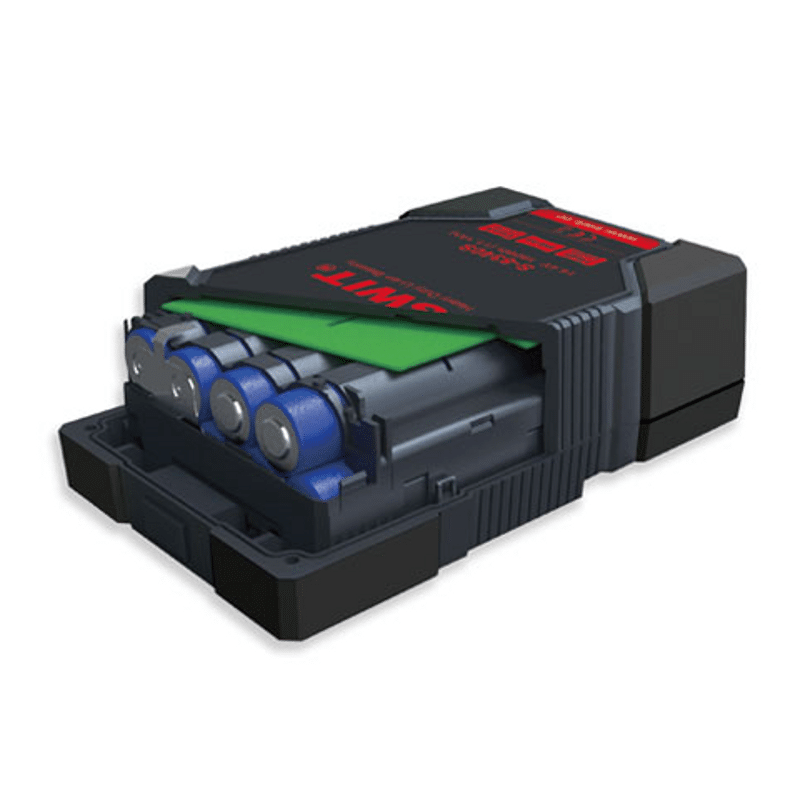

The S-8340S has an innovative dual housing structure: the inner cell cage and outer anti-shock housing with rubber covers.
The new structure makes the battery quite strong, anti-shock, protects the battery from drop-off accident, as well as IP66 class water/dust proof.

Consists of 18pcs high class 18650 battery cells, and reaches 160Wh / 11.1Ah high capacity, which is the largest capacity to board to airplane.
Can run approx 6 hours for normal ENG cameras, and approx 2 hours for ARRI ALEXA.

S-8340S has the innovative 8-LED power indicators. When free or charging, the LEDs will indicate
current capacity percentage, and when battery is discharging, the LEDs will display the remaining
running time at the current discharging power, accurate to 15 minutes. Meanwhile, the battery pack
adopts intelligent digital info chip that compatible with SONY camera info system, and can display
remaining minutes on camera viewfinder.

S-8340S supports 6A fast charging by SWIT S-3812 fast charger, to save more than 50% charging time.
The 160Wh S-8340S battery can be charged from 0 to 80% after 1.5 hours, and fully charged within 2.5 hours.

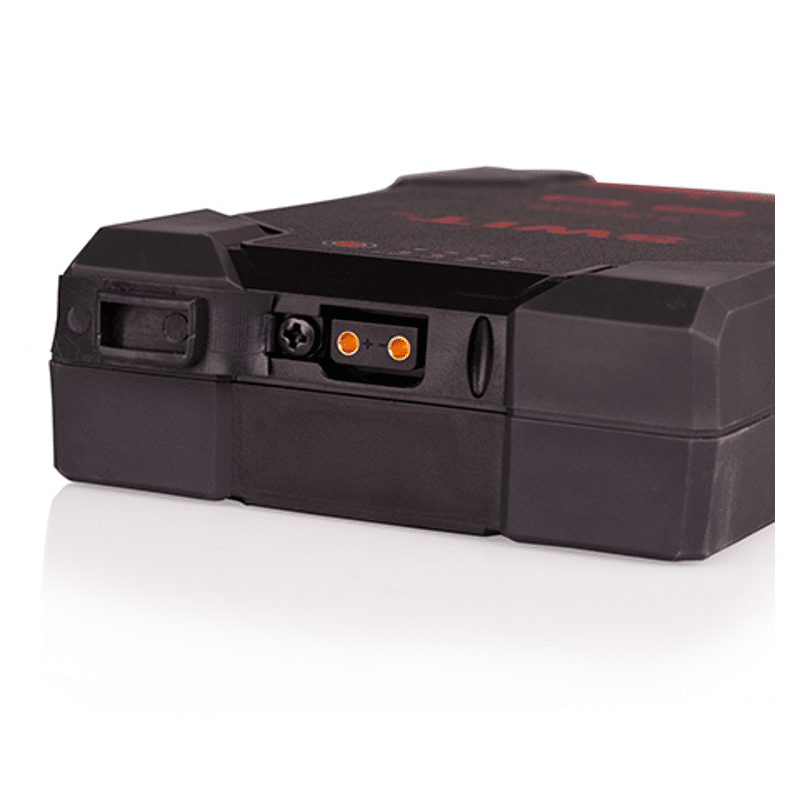

A D-tap DC output socket is equipped on the top side of the battery pack, to power the other on-camera equipments together.
The Max output current of D-tap is 8A.

8-LED Power Indicators
When battery is discharging:
Press “Power Check” button, Upper 4 LEDs display remaining working hours, and Lower 4 LEDs display remaining working minutes, under current output power.
When battery is charging:
Upper 4 LEDs flashing constantly, indicates the real-time capacity percentage 25%, 50%, 75% and 100%.
When battery is free:
Press “Power Check” button, Upper 4 LEDs light up, to indicate the remaining capacity percentage 25%, 50%, 75% and 100%.

Guarantee : 2 years (1 year 70% capacity)
Taric : 8507600090
Country of Origin : China
