Heavy Duty Battery

High load & IP54 waterproof

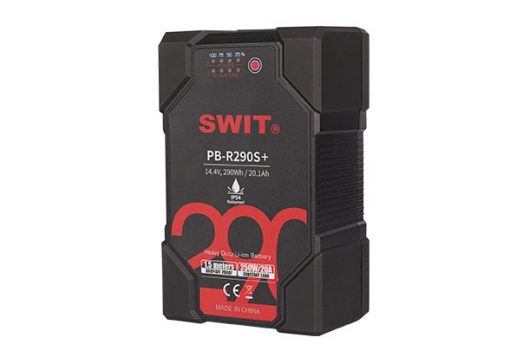

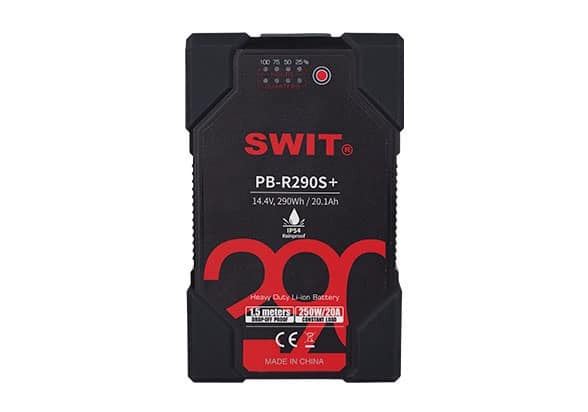

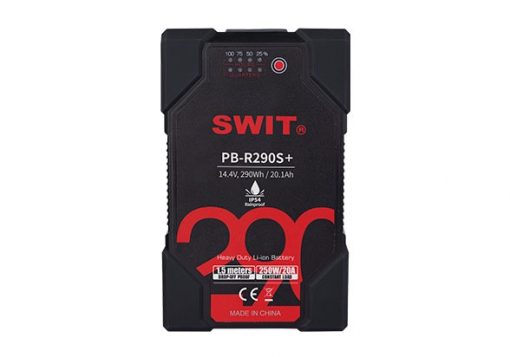

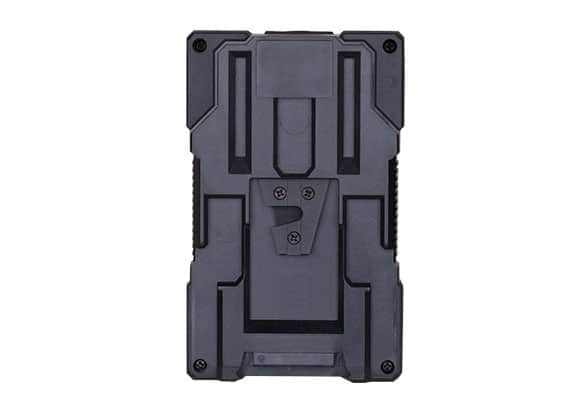

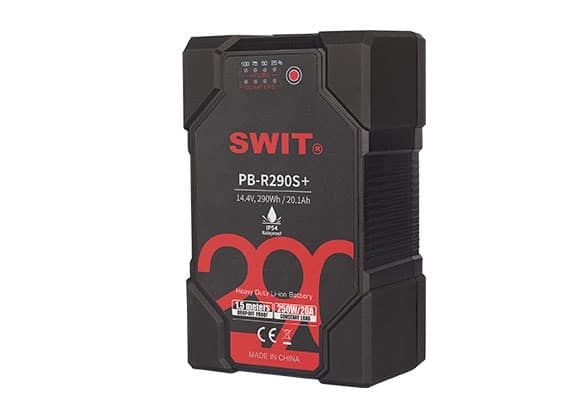

PB-R290S+ is a 290Wh V-mount battery, for Cine and ENG cameras, with dual housing heavy duty sealed structure, IP54 rainproof, 1.5m drop-off proof. The battery supports high load, fast charging and digital power info display, for field applications

IP54 Waterproof

1.5 meters drop-off proof

PB-R290S+ has dual housing sealed structure to support IP54 waterproof in rain, snow and other inclement weather. The dual housing with rubber cover is also strong enough to survive from 1.5 meters any angles drop-off.

290Wh / 20.1Ah Capacity

Consists of 24pcs high class 18650 battery cells, and reaches 290Wh / 20.1Ah high capacity.
Can run approx 11 hours for normal ENG cameras, and approx 3.5 hours for ARRI ALEXA.

High Load for Cine Cameras

250W / 20A constant load

PB-R290S+ provides at least 250W/20A high load even at 1% capacity (Peak load up to 305W), to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 24A.

6A Fast Charging

Using SWIT S-3812S fast charger

PB-R290S+ supports 6A fast charging by SWIT S-3812S fast charger, to save more than 50% charging time. The 290Wh PB-R290S+ battery can be charged from 0 to 80% after 3.4 hours, and fully charged within 4.8 hours.

Digital Power Info

8-LED + SONY&RED viewfinder info

PB-R290S+ has the innovative 8-LED power indicators. When free or charging, the LEDs will indicate current capacity percentage, and when battery is discharging, the LEDs will display the remaining running time at the current discharging power, accurate to 15 minutes. Meanwhile, the battery pack adopts intelligent SMBUS that compatible with both SONY and RED camera info system, and can display remaining minutes on camera viewfinder.

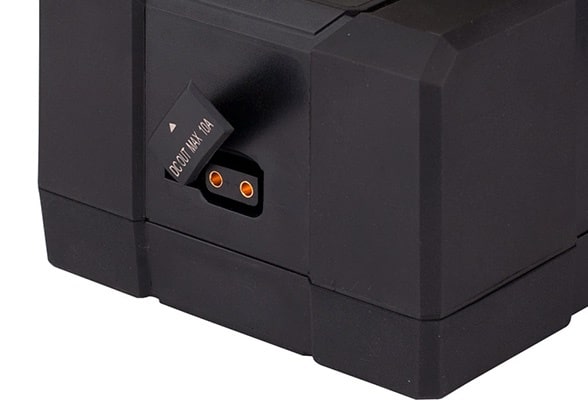

D-tap Socket

A D-tap DC output socket is equipped on the top side of the battery pack, to power the other on-camera equipments together.
The Max output current of D-tap is 10A.
