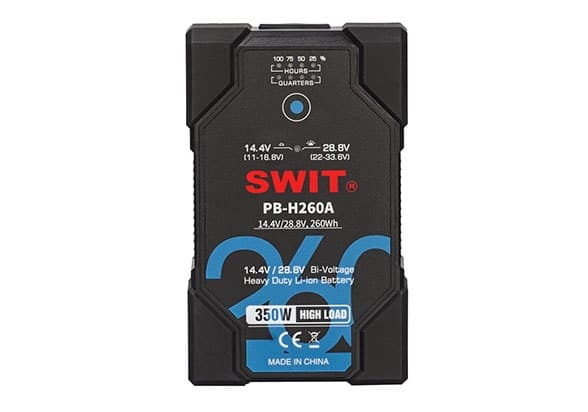

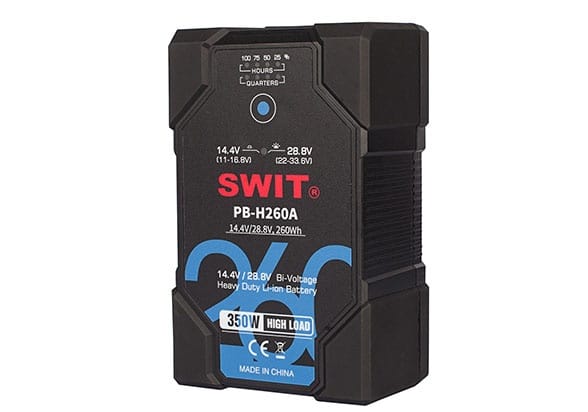

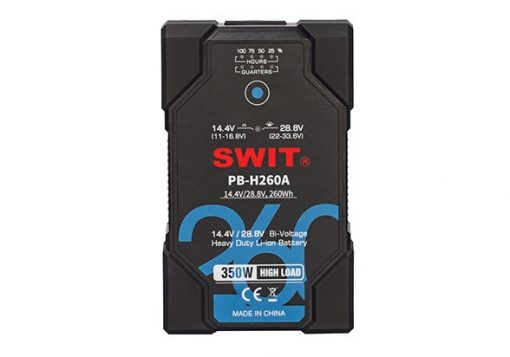

SWIT PB-H260A 260Wh High Load Bi-voltage Battery

SWIT PB-H260A 260Wh High Load Bi-voltage Battery - Image 2

SWIT PB-H260A 260Wh High Load Bi-voltage Battery - Image 3

SWIT PB-H260A 260Wh High Load Bi-voltage Battery - Image 4

SWIT PB-H260A 260Wh High Load Bi-voltage Battery

Price on request

Please note!

Lithium Ion Batteries over 100Wh are considered as dangerous goods and can not be shipped via airfreight. Please send us a quote request and we will make you an individual offer.

Request a quote

SKU: SW-PB-H260A Category: Gold Mount Batteries Brand: Swit

Description

Discharging mode	11-16.8V normal voltage,22-33.6V high voltage
Nominal voltage	14.4V;28.8V
Capacity	260Wh, 18Ah;260Wh, 9Ah
Max constant load	200W, 16A;350W, 15A
Cell	Li-ion
Max charging current	16.8V, 6A
Environment	Charging:0~40°C (10-30°C recommended)
	Discharging:-20~50°C (-10-40°C recommended)
	Storage:-20~50°C
Dimension	162×101×69mm
Net weight	1.5Kg

14.4V/28.8V Bi-Voltage

Auto detect and switching

Many high power film devices are designed 22-33.6V high power input, to reduce current. If a standard Gold mount battery output high voltage directly, it will damage normal 14.4V voltage devices.
SWIT innovative “Bi-voltage” battery adopts standard Gold mount, and output 11-16.8V normal voltage or 22-33.6V high voltage by automatic recognition and switching, and compatible for all normal voltage chargers, safe and reliable.

260Wh Capacity

350W High Load

PB-H260A consists of 24pcs high class 18650 battery cells, and reaches 260Wh high capacity.
On 11-16.8V output, the Max constant load is 200W;
On 22-33.6V output, the Max constant load is 350W
To drive high power cine camera and lights, and the high load battery will have longer life time than normal battery if always under full load power.

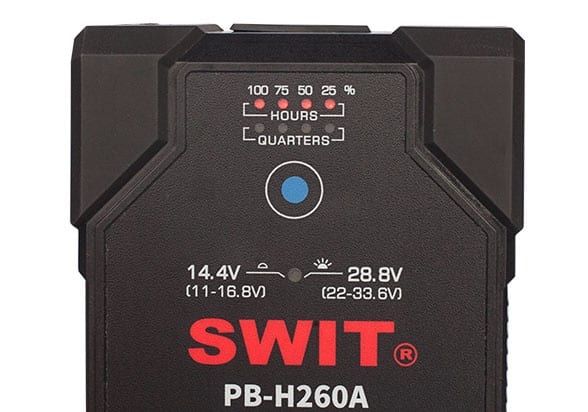

Digital Power Indicator

8-LED remaining time read

When battery is discharging:
Press “Power Check” button, Upper 4 LEDs display remaining working hours, and Lower 4 LEDs display remaining working minutes, under current output power.
The LED will flash when remaining time is less than 15 minutes to remind changing battery.
When battery is charging:
Upper 4 LEDs flashing constantly, indicates the real-time capacity percentage 25%, 50%, 75% and 100%.
When battery is free:
Press “Power Check” button, Upper 4 LEDs light up, to indicate the remaining capacity percentage 25%, 50%, 75% and 100%.
