Name: SWIT LA-WR8 Pocket Wireless DMX controller system
Brand: Swit
SKU: SW-LA-WR8 Tx+3Rx
Availability: InStock

SWIT LA-WR8 Pocket Wireless DMX controller system

€ 299,00 excl. VAT

SKU: SW-LA-WR8 Tx+3Rx Category: Light Controller Brand: Swit

Pocket size portable DMX controller
2.4G wireless, quick connection
400m (LOS) transmission distance
Control all standard DMX512 lights
8-ch x 7 groups control channels
2x AA batteries or USB power

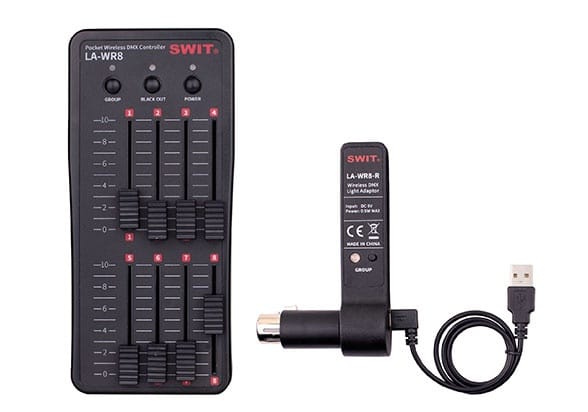

The Controller

Model	LA-WR8
Wireless	2.4G transmission
Distance	400 meters (Line-of-Sight)
Input Voltage	2x AA batteries or 5V Micro USB
Power Consumption	5W
Dimension	184mm×84mm×22mm
Weight	Approx. 274g

The Light Adaptor

Model	LA-WR8-R
Wireless	2.4G transmission
Distance	400 meters (Line-of-Sight)
Input Voltage	5V Micro USB
Power Consumption	0.5W
Dimension	110mm×70mm×12mm
Weight	Approx. 47g

in the box

1x LA-WR8 Controller with 1 USB cable

3x LA-WR8-R Receiver with 3 USB cables

Pocket Wireless DMX

LA-WR8 is a portable wireless DMX controller for field light kit application, compatible with all standard DMX512 protocol lights, to get rid of complex DMX cable work and large DMX console, and makes the field light kit control easier and quicker.
* The “SkyPanel” light indicated in this picture is a product of ARRI Group, and is one of the lights that this wireless DMX controller is compatible with.

LA-WR8 adopts standard DMX512 protocol, 8 faders and 7 groups switching by 7 colors indicator. (Totally 56 DMX channels) Switch the controller group color the same as light adaptors, and they can be connected and controlled.

8-ch×7 Groups DMX512 Control

Power Supply

The Controller can be powered by 2x AA batteries, continuously 4 hours working. Support sleep mode if no operation after 1 minute. The Controller supports Micro USB power input as well. You can use USB power bank to power the controller.
The Light Adaptor is powered by USB, only 0.5W power. The professional lights like Skypanel, SWIT PL-E series, FL-C series have USB socket on the light.
