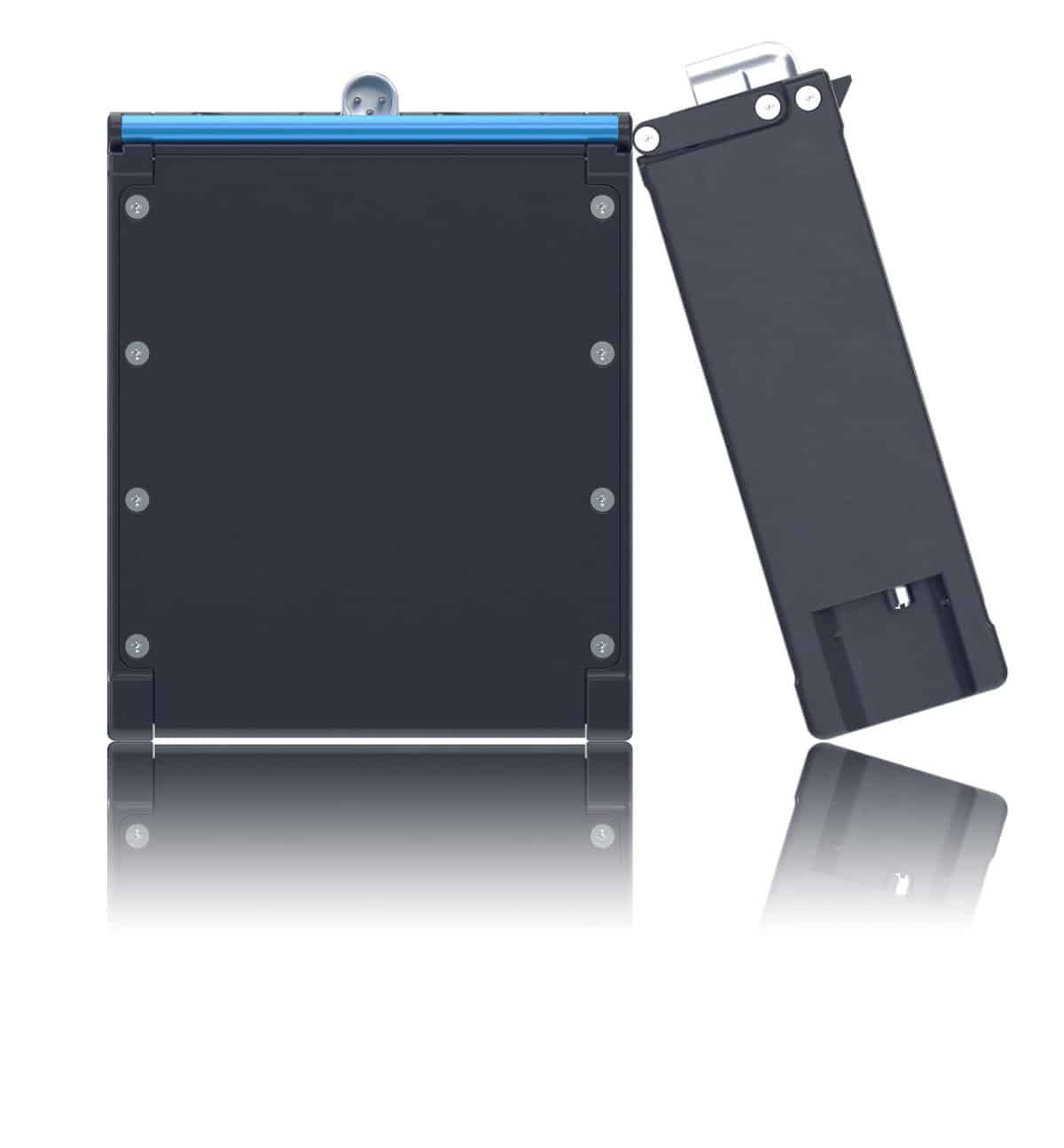

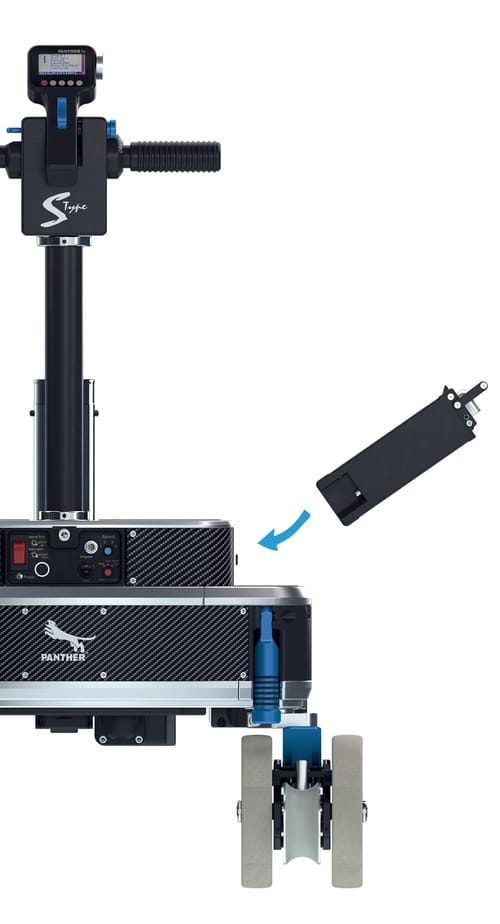

In order to realize a compact and lightweight dolly design, we developed new Slide-In batteries (302577) for the S-Type.
These are quickly and easily pushed into the side of the dolly and flow smoothly into it. A carrying handle facilitates handling and transport.
COMBI-WHEELS Reinvented.
H-Pneumatic Wheel (138802)

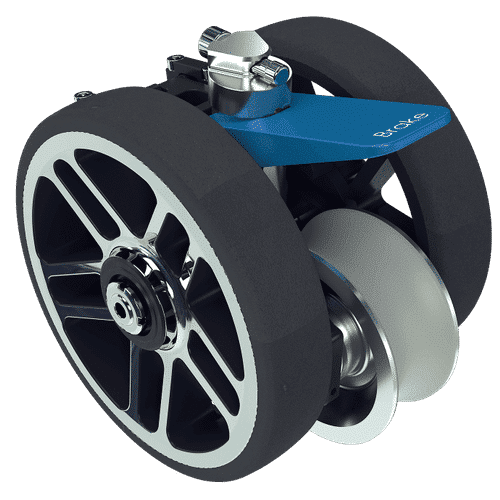

H-Studio Wheel hard (310289)

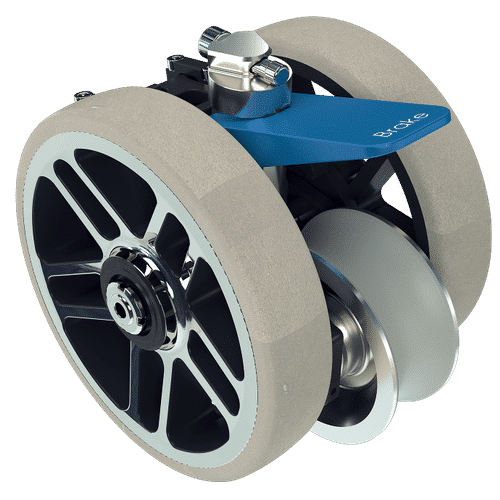

H-Studio Wheel soft (310615)

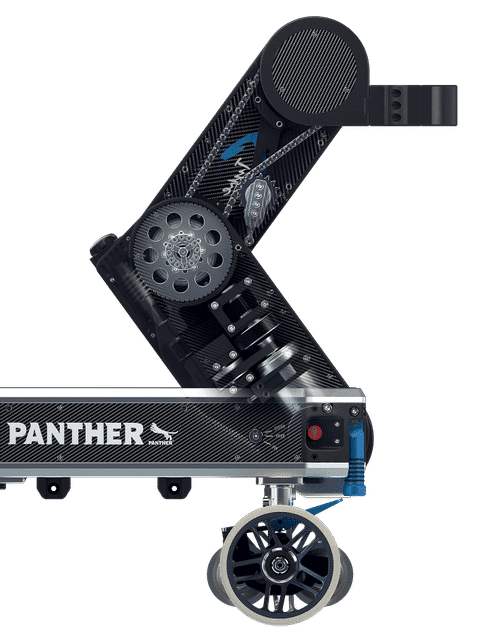

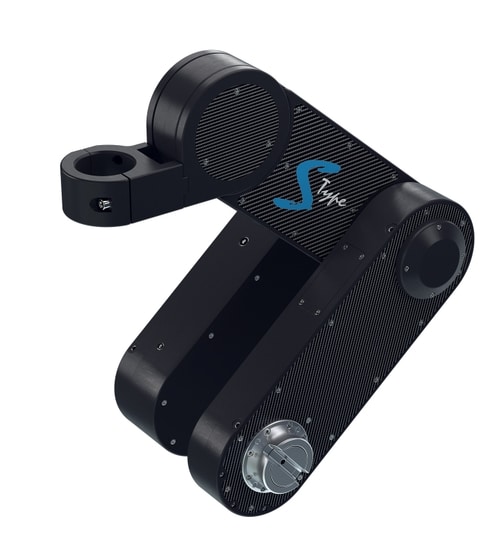

SCISSORS ARM
Detachable, 100% linear and maximum stability.
During the development of the arm our engineers gave everything! The S-Type scissors-arm makes a 100% linear movement. Low energy expenditure and maximum stability are ensured by the compact double-arm design.

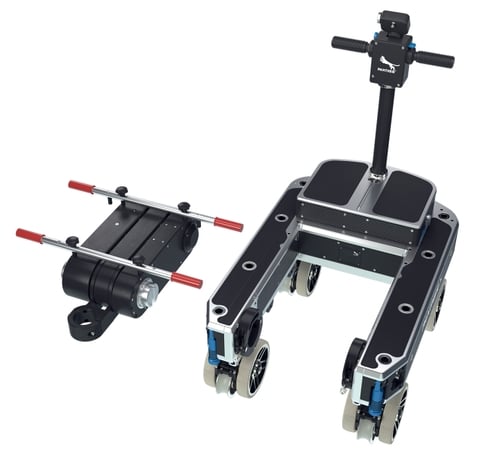

DETACHABLE
To simplify the transport massively, the scissors-arm element of the Panther S-Type is detachable. It can be quickly and easily separated 100% from the body. Extra developed carrying bars (310120) enable an easy removal.
TRANSPORT
The slim design of the S-Type makes space-saving transport easy to realize. Therefore you can transport the dolly if your space is limited – even upside down.

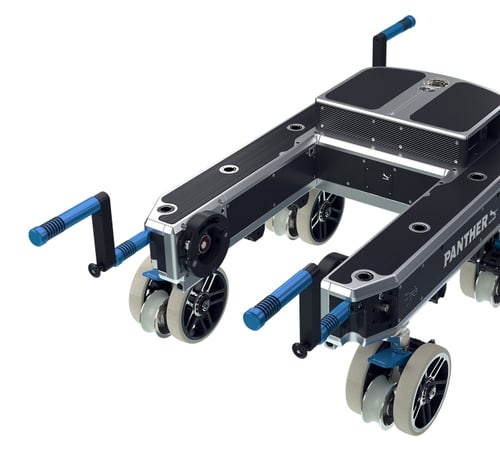

The integrated carrying handles can be extended by the Carrying Grips (302783).

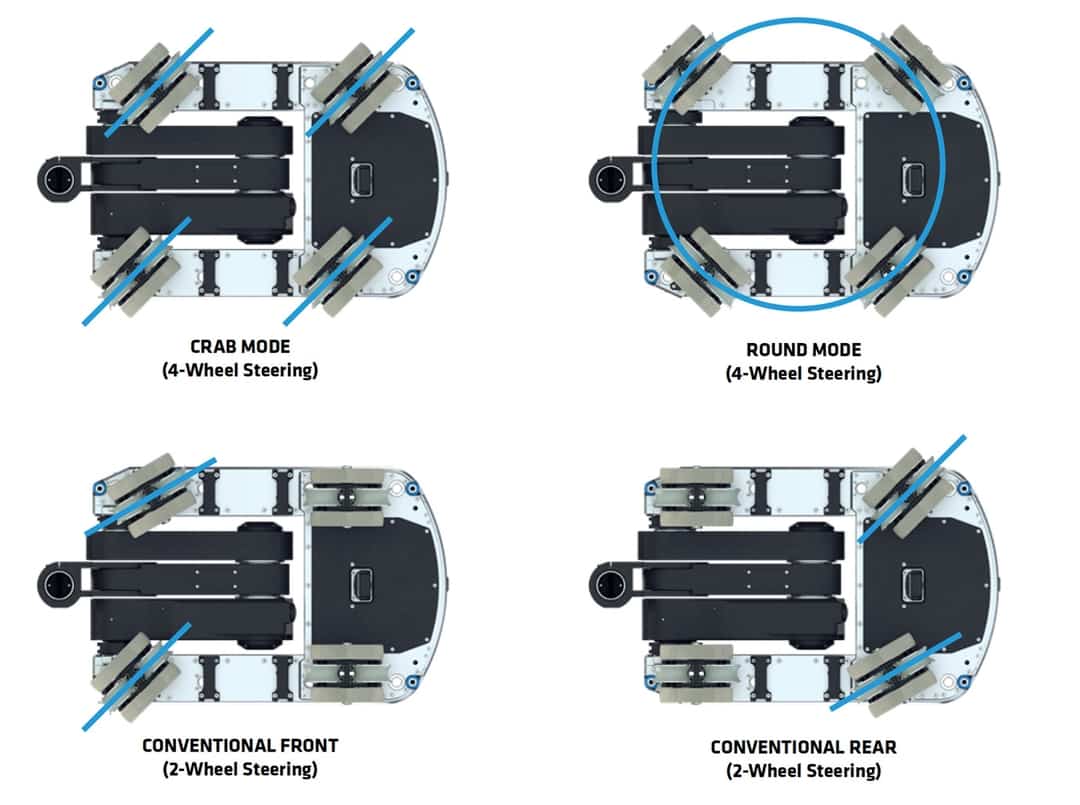

4 STEERING MODES Easy to use in every situation.
To give maximum flexibility to the operator, the Panther S-Type is equipped with 4 different steering modes:
Um maximale Flexibilität für den Operator zu gewähren ist der Panther S-Type mit 4 verschiedenen Lenkmodi ausgestattet:

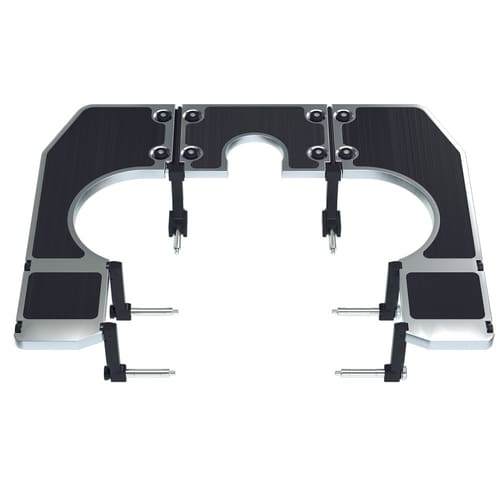

We also did our best for the platform design! You only need one single set (consisting of 3 parts) for the whole dolly. Whether high or low platform: the S-Type flip- flop platforms (302583) cover every position and remain extremely stable.
TECHNICAL DATA Let‘s talk about facts.
|
Length (Dolly) Länge (Dolly) 96,5 cm / 38‘‘ |
|
Width (Dolly) Breite (Dolly) 64,5 cm / 25,4‘‘ |
|
Height (Dolly) Höhe (Dolly) 39,5 cm / 15,55 (front) | 48 cm / 18,9‘‘ (rear) |
|
Center Distance (Sciccors-Arm) Achsabstand (Scherenarm) 37 cm / 14,6‘‘ |
|
Standard Lift range (Low-Mode) Standard Hub (Low-Mode) 103 cm / 40,6‘‘ |
|
max. Lift range (Super Low-Mode) max. Hub (Super Low-Mode) 146 cm / 57,5‘‘ |
|
Transport weight (Dolly without wheels) Transportgewicht (Dolly ohne Räder) 104 kg / 229 lbs |
|
Transport weight (Scissors-Arm) Transportgewicht (Scherenarm) 64 kg / 141 lbs |
|
Track Width Schienenspur 62 cm (wide) | 48 cm (narrow) |
|
Ground Clearance Bodenfreiheit 21cm / 8,3‘‘ |
|
Payload (Dolly) Traglast (Dolly) 800 kg | 1764 lbs |
|
Payload (Scissors-Arm) Traglast (Scherenarm) 100 kg | 220 lbs |
|
Battery Batterie 2 x 24V |
| Weight | 250 kg |
|---|
