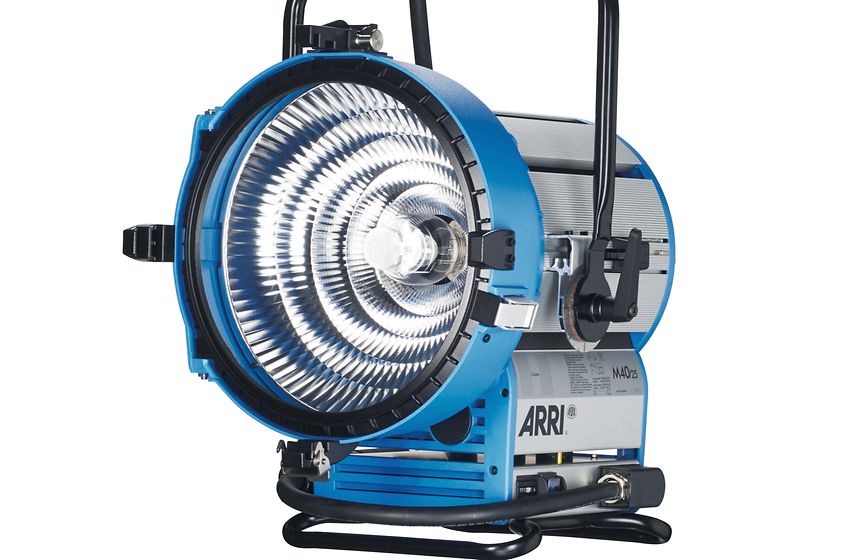

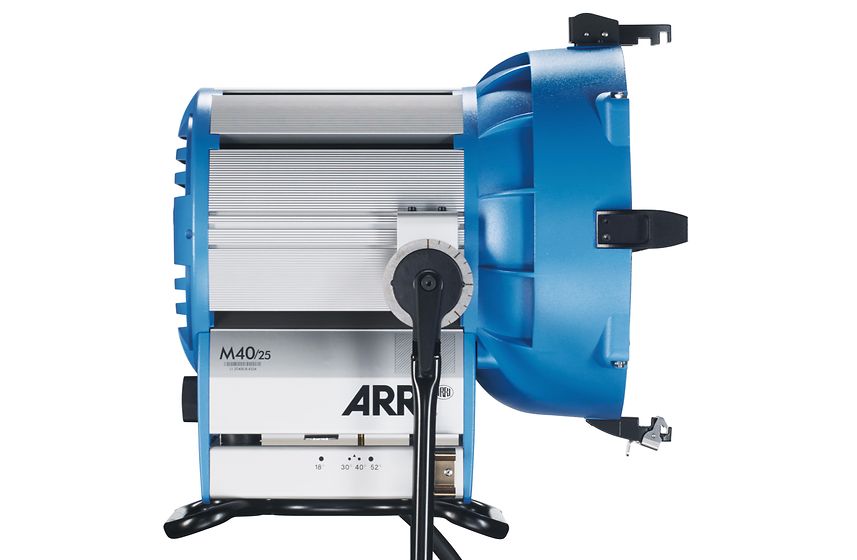

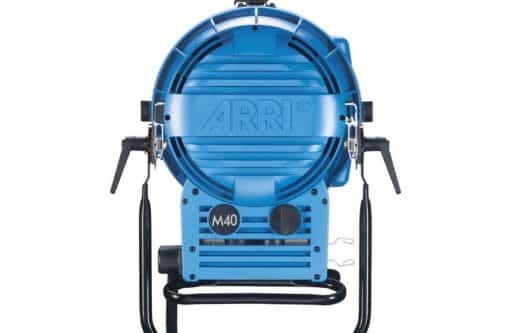

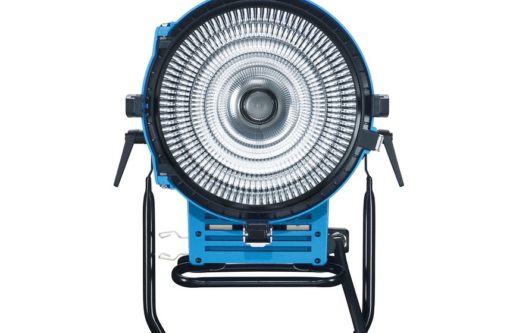

Like all members of the M-Series, the M40 unifies the advantages of a PAR light and a Fresnel fixture. Due to the unique lens-less MAX Technology, the unit is open face and thus very bright, but also focussable over a range of 18 to 52° HPA (Half Peak Angle), casting a crisp shadow. The reflector characteristics is optimised for 4000 W lamps, but can also be used with 2500 W lamps.

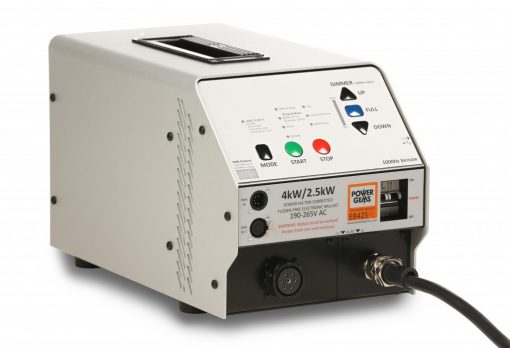

EB425PA high specification Power Factor Corrected 4,000W ballast which can operate on any supply voltage worldwide, and operate up to 4 different lamp powers.This model bears the TÜV quality label. It comes complete with DMX control and 4 output speed options including 1000Hz for High Speed shooting.The ballast is built using a unique modular system which means that the main power electronics can be simply unplugged interchanged even with modules from our 1,800 or 800W products.

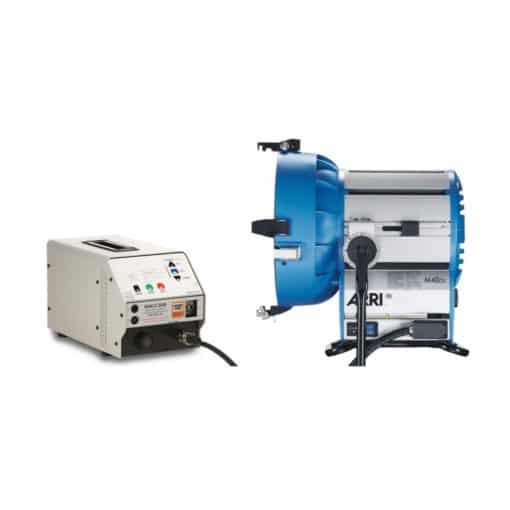

ARRI M40 set Package Contents

• 1x L1.37400.B M40, blue/silver
• 1x EB425PL High Speed 4000W incl. 1000Hz Electronic Ballast
• 1x Head-to-Ballast cable 2500/4000 W, 7 m, International connector (VEAM
• 1x L2.41200.0 4-leaf barndoor (413 mm / 16.3″)
• 1 x L2.37305.0 Spillring (400 mm / 15.8″)

Product Features EB425PL High Speed ballast 4000W incl. 1000Hz:

• 4 Output Speed Options (including 1000Hz)
• 4 Output Power Options
• DMX Control
• Modular Construction
• Max Lamp Power    4000W
• Output Power Options    4kW, 2.5kW
• Output Frequency Options    1000Hz, 300Hz, 100Hz, Silent Mode
• Input Voltage Range    190-265V AC
• Current Draw    19.6A@230V
• Power Factor    >0.98
• DMX Built In    Yes
• Max Ambient Temperature    45°C/113°F
• Width    245mm/9.6″
• Height    270mm/10.6″
• Length    445mm/17.5″
• Weight    17kg/37.6lb
